Trail Bikes 132cc Big Bore Kit + VM26 Carb + Big Valve - CRF110

Trail Bikes 132cc Big Bore Kit + 26mm Carb Kit + Big Valve Kit for: CRF110 2013-18
Pricing: $412.95


Trail Bikes 132cc Big Bore Kit + VM26 Carb + Big Valve Kit - Honda CRF110 2013-19 Models Only

This kit is one of the most complete performance kits for the 2013 thru 2018 CRF110.
It is the TB 132cc big bore kit combined with the race proven Mikuni VM26 carb kit and to top it off with a Big Valve Kit.
The combination of these 3 kits delivers the ultimate performance upgrade for your 2013-18 Honda CRF110!

Key features:

Fits 2013-18 Honda CRF110 (Not for the later fuel injected models)
Largest bore (55mm) you can go without boring the cases
Proven high quality Mikuni VM26 carburetor
New reverse intake manifold
Better cylinder head flow
Rev higher and faster with lighter valves
Oversized and higher quality valves over stock valves
More power and fun at an very affordable price

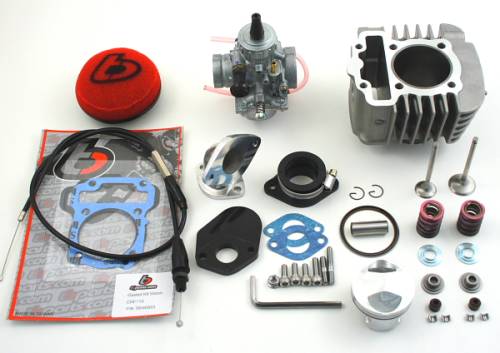

Kit includes:

55mm Aluminum Cylinder with Steel Sleeve
55mm Lightweight Piston & Rings with 13mm Wrist Pin
55mm Top End Gasket Set
Genuine Mikuni VM26mm Performance Carb (Not a cheap online fake)
Jet kit with 3 extra different sized jets
Reverse Intake Manifold Kit with Mounting Hardware
Foam Pod Air Filter
Throttle Cable (Straight for Stock 110 throttle or CR "Style" (If you need a billet Fast50s throttle you also want part # Throttlecable 18-26 )
Stainless Steel EV8 lightweight Big Valve Kit with valve springs, retainers, seals, and cotters.

Please note: The stock CRF110 throttle is restrictive and will need to be replaced w/ a CR "Style" Throttle or the TB Billet throttles. If you don't have one, we have a few throttles available that will work (TBW1051 generic plastic CR "Style" throttle or the TB billets part # TBW0425 or TBW1123)

Note 2: The valve kit should be installed by a professional mechanic or shop that offers valve job service as the valve seats must be cut larger to accept the larger valve heads diameters and valves need to be sunk deeper to allow for overlap clearances. The kit includes a document that includes protrusion and installs heights specs.

Parts Included:

TBW0891 - Cylinder
•TBW0892 - Piston
•TBW0893 - Gasket kit
•TBW0301 - Throttle cable
•TBW0399 - VM 26 Carb
•TBW0477 - Air filter
•TBW0864 - Reverse intake kit
•TBW0888 - Big valve kit


  • K9139TB
  • K9139TB
  • Trail Bikes
  • New


Shipping Information

  • Item Requires Shipping
  • 6.0 lbs.
