Trail Bikes 165cc Roller Rocker V2 Race Head + 28mm Carb Upgrade Kit -  KLX110 / KLX110-L / DRZ110 (All Years)

DRZ110 / KLX110
Please Call for Availability


Trail Bikes 165cc Roller Rocker V2 Race Head + 28mm Carb Upgrade Kit -  KLX110 / KLX110-L / DRZ110

This complete kit to turn your KLX110 / DRZ110 into an absolute beast! This kit includes our new Race Head V2 and while the new head may appear to be the same on the outside as other TB type race heads, internally it has gone through numerous changes. The addition of forged aluminum roller rocker arms and a new camshaft are the biggest changes followed by bigger valves and ports. Both valves are now stainless as well (21-4N material). This all adds up to a cylinder head that puts out a professional level of performance yet is still affordable for the privateer rider. The kit also includes an all aluminum ceramic plated 64mm cylinder with a skirt. This cylinder is lighter than a steel sleeved aluminum cylinder, reduces friction (thus increasing power), improves sealing, and provides better heat transfer. (runs and cools down quicker) This kit topped off the roller head with a 28mm performance carb kit that is easy to tune and works great with this large bore kit. Unlike other kits, our head gasket kit also includes a head o-ring set and exhaust gasket so you don’t have to re-use your old ones or make a trip to your local dealer to get new ones and spend more money. These are high quality parts and definitely will make a huge increase in power and fun factor on your bike goes WAAAY up!

     • Kawasaki KLX110 2002-Present
     • Kawasaki KLX110 and KLX110L 2010-Present with additional FF0645TB sprocket)
     • Suzuki DRZ110 (All Years)

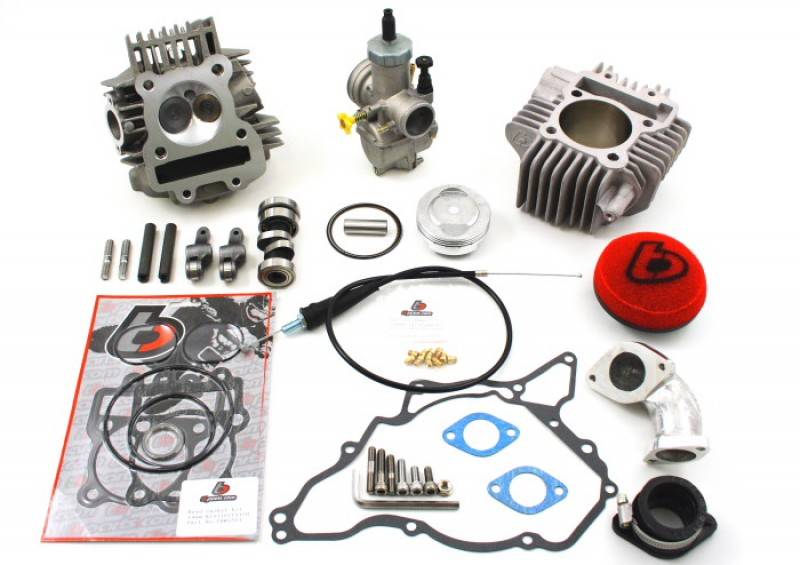

Kit Includes:
     • V2 Race Head 30mm intake valve, 24.5mm exhaust valve, 27mm intake port, 23mm exhaust port
     • Roller rockers (Now comes with Aluminum Rocker Arms)
     • Race Camshaft designed specifically for the V2 Race Head
     • Skirted All aluminum ceramic plated 64mm cylinder (Note: Cases must be bored)
     • Lightweight high compression 64mm piston with rings, pin, & clips
     • Head gasket kit - includes the cylinder head o-ring set and an exhaust gasket
     • 28mm High Performance Carb (w/ 125 main & 50 pilot)
     • Race Head V2 "Large" Intake Kit (Matches V2 large intake port)
     • Jet kit (#85,#95,#100,#105,#110 up to #135 a total of 10 spare jets)
     • Throttle Cable
     • High Flow Foam Air Filter

Kit Part #'s:
     • FF9017TB (Head & Valves FF0459TB, High Lift, Long Duration Race Camshaft)
     • FF0523TB Cylinder
     • FF0503TB Gasket
     • FF0590TB Piston Kit
     • FF0321TB Throttle Cable
     • FF0474TB Intake
     • FF0327TB Jet Kit
     • FF0490TB 28mm Carb
     • FF0491TB High Flow air filter
     • FF0305TB Complete top end Gasket kit

If you have any questions please call one of our knowledgeable and friendly techs at 833-327-8507

Included Part Numbers

TBW09017(Head, Valves, TBW0577 Cam)


  • K9029TB
  • K9029TB
  • New


Shipping Information

  • Item Requires Shipping
  • 6.0 lbs.
