Trail Bikes Vintage 108cc Stroker Crank Kit 2, Conversion 6 volt - Z50

Honda Trail Bikes 108cc Stroker Kit
An affordable kit that will convert your 88cc Race Head kit into a powerful open class 108cc engine...

Application:
     •Honda Z50 - 1969-79

This kit requires engine disassemble and therefore, we highly recommend a professional technician install this kit. If you plan on doing it yourself, you will need to have a Clymer or Honda shop manual. Instructions do not come with the kits but the installation of the crankshaft is just like installing a stock Honda crankshaft.
Recommend purchasing the Upgrade Disk Kit. Additionally, we do not recommend the use of an inner rotor kit with this clutch (on a 108cc or larger engine) as it can lead to premature clutch failure due to extra fatigue placed on the clutch housing. DO NOT tighten the clutch nut with a hammer and screw driver - it must be torqued on.

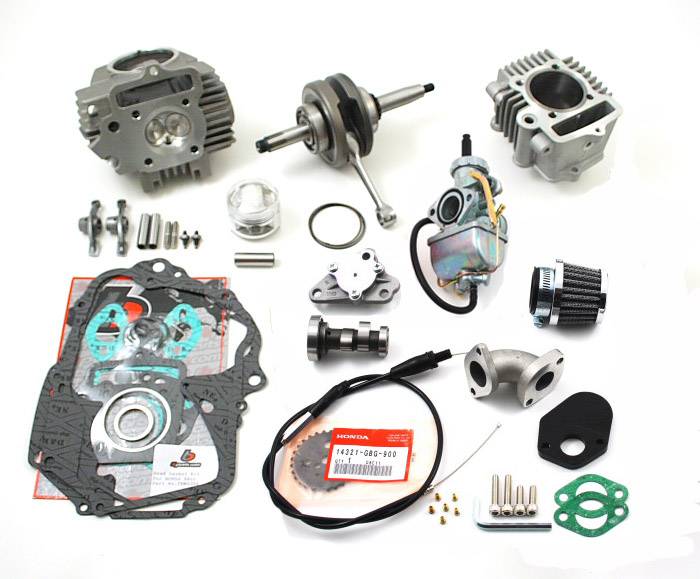

Key Features:
     •51mm Crankshaft with NTN bearings
     •Crankcase and clutch cover gaskets
     •Head gasket kit
     •26mm mikuni carb kit?


FF0622TB -Crank
FFW0365TB -Piston
FF0225TB -6 Volt Oil Pump
FF0287TB -Gasket
FF0334TB -Gasket
FF0206TB -Gasket
FF0273TB -Intake
FF0301TB -Throttle
FF0230TB -Carb
FF0174TB -Air Filter
FF0327TB -Jet Kit
FF0385TB -Race Head and Valves Assembly
FF0251TB -Right Side Cover
FF0189TB -Camshaft
FF0156TB -Cylinder
FF0861TB -New styleCam Sprocket


Recommended:
     •High volume oil pump
     •Oil Cooler
     •Billet clutch hub
