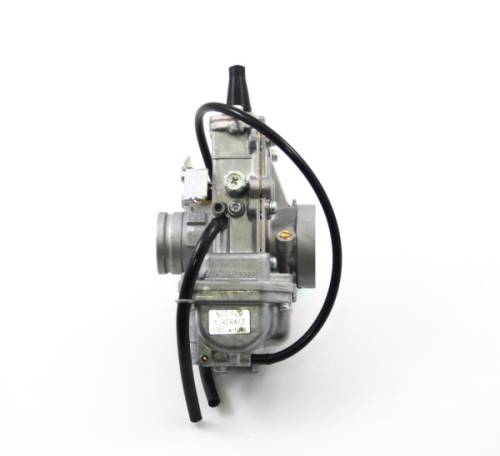

Trail Bikes Mikuni VM 28 Round Slide Carb - Z50 / XR50 / CRF50 / XR70 / CRF70 / KLX110 / DRZ110

Honda TB Parts - Mikuni's 418 Series flat slide carburetor

Fits Many Models Below with proper intake selection:
Honda XR50, CRF50, XR70, CRF70
Kawasaki KLX110, KLX110L
Suzuki DRZ110
(Does not fit on OEM intake)

TM Series 418 Carburetors provide significant performance improvements

Air flows faster and smoother through the TM Series venturi due to the flat slide design and the jet blocks which help create smooth bore effect.

The high velocity of the air flow means a stronger vacuum at the needle jet providing more precise metering and better throttle response.

This carb was designed for use on 4-stroke engines.

MAIN JET - TYPE 4/042
PILOT JET - TYPE VM22/210
NEEDLE JET - TYPE VM30/46
STARTER JET -TYPE VM17/1002

Uses TBW0413 or 1.75in uni pod filter
