Trail Bikes 143cc Big Bore Kit, Race Head V2 & Intake Kit - Kawasaki KLX110 2010+ Models

Kawasaki KLX110 2010+
Please Call for Availability


TB 143cc Big Bore Kit, Race Head V2 & Intake Kit - Kawasaki KLX110 2010+ Models

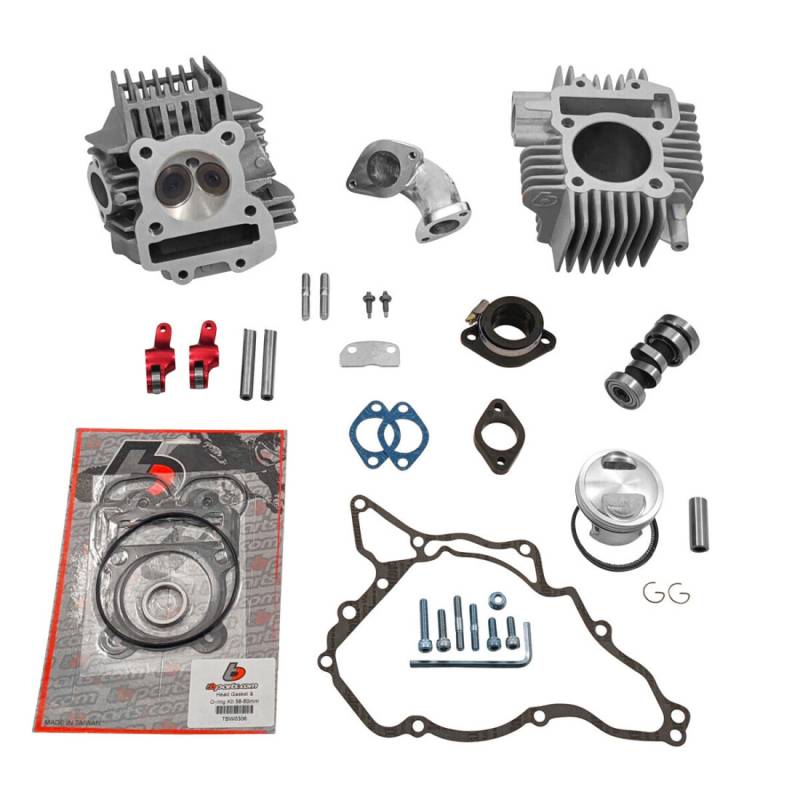

143cc Race Head V2, Big Bore Kit Includes:
     -Race Head V2 – Forged Aluminum Roller Rockers, 30mm intake valve, 24.5mm exhaust valve, 27mm intake port, 23mm exhaust port (valves installed).
     -Race Camshaft V2-1 for Race Head V2
     -Ceramic coated all aluminum cylinder (no steel sleeve)
     -Updated Lightweight high compression domed 60mm piston with rings, pin, & clips
     -Head Gasket Kit – includes the cylinder head o-ring set and an exhaust gasket.
     -Race Head V2 Intake Kit
     -Cam Sprocket

This kit is the same as the complete kit minus the carburetor, throttle cable, and air filter. It does include the Intake Kit that port matches the V2 head and allows you to run the following boot/spigot mount type carbs:

     -Mikuni VM24, VM26, & VM28
     -Keihin PE26 & PE28
     -OKO 26mm
     -Our TB 28mm
     -Aftermarket versions of the above Mikuni and Keihin carbs (boot/spigot type only)

The FF0321TB throttle cable will work with most of the above carbs. A 42mm or 49mm air filter will work depending on which carb it used and we have both types available in this section. (Call the shop or email us)

Features of this kit:
     -Race Head V2
     -Race Camshaft with high lift & longer duration
     -Larger intake manifold

While this head may appear to be the same on the outside as the previous TB race head that was discontinued & stock heads, internally it’s has numerous differences.
The addition of forged aluminum roller rocker arms and a new race camshaft are the biggest changes followed by bigger valves and ports. The exhaust valve (like the intake valve) is now also stainless steel made of 21-4N material. This all adds up to a cylinder head that puts out a professional level of performance yet is still affordable. The kit also includes an all aluminum ceramic coated cylinder. This cylinder is lighter than a steel sleeved aluminum cylinder, reduces friction (increasing power), improves sealing, and provides better heat transfer (runs and cools down quicker). In 2020 we upgraded the piston for higher compression and more power. Unlike other kits, our head gasket kit also includes a head o-ring set and exhaust gasket so you don’t have to re-use your old ones or make a trip to your local dealer to get new ones and spend more money. These are high quality parts and require no machining to the cases or other modifications – bolt on and go!

Add a stroker crankshaft for even more power! (Just call and a rep can make sure you get what you're in need of)

These parts are installed in the same manner as the OEM parts.

If you have any questions please call one of our knowledgeable and friendly techs at 833-327-8507
