DNM Rear Shocks - XR100 / CRF100

DNM Rear Shocks - Honda XR100 / CRF100 Specs down below)

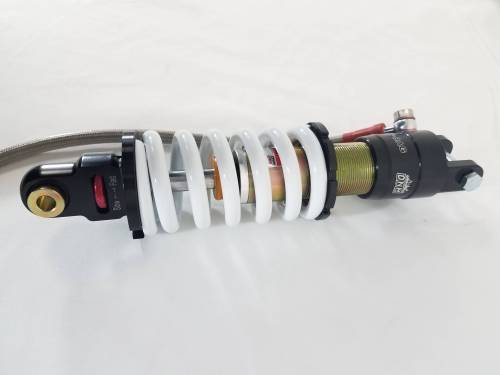

DNM fully adjustable rear shock for CRF100 and XR100. This shock is a huge improvement over the factory OEM / shock as it is sprung heavier. It has adjustable rebound & compression letting you dial in your rear suspension.

     -Simply bolt on and go!

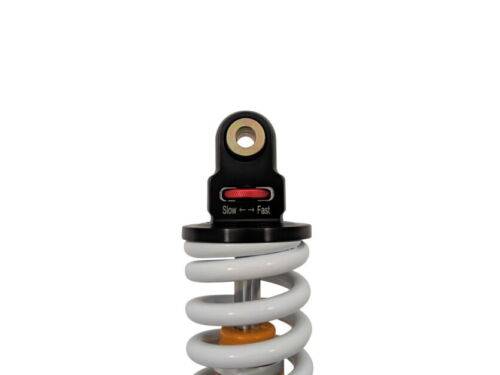

     -Preload and Rebound Adjustments
     -650lb Spring rate great for anyone over 150 lbs.
     -Nitrogen Charged Oil Damping
     -Hard chromed steel damper shaft
     -High quality surface finish

PLEASE NOTE: Main spring is NOT white anymore it is now RED.(Updated pic coming soon)

Fits:
     -Honda XR100
     -Honda CRF100

Important Installation notes:
1) This DNM shock was made as long as possible while getting the most travel out of the limited area
available for the shock on the 100's. (This makes for a tight fit, to install the shock, the top must go up into the top shock mount first (but do not bolt it in until you have bolted the bottom in)
2) Secure the reservoir on the left side behind the side # plate (This area will still clear
the left rear side cover)
3) You will need and want to secure the resevoir oil line away from the drive chain to prevent damage to the line while riding.
Securing the reservoir in
this area will still clear
the left rear side cover.
4) You can use an the OEM frame tab and threaded hole to secure the
oil line (with either a zip tie or generic cable/line holder)

If you have any questions please call one of our knowledgeable and friendly techs at 833-327-8507
